Overview
This article provides instructions for upgrading your Rogue Echo Bike console to the new M2 model. This process involves removing the existing console, installing an adapter plate, and mounting the new M2 console.
Estimated Time: 15–20 minutes
Number of Steps: 3
Issue: Upgrading the console hardware to the M2 model for enhanced functionality.
Required Tools:
Phillips head screwdriver (included)
Torx T27 tool (included)
Detailed Step-by-Step Instructions

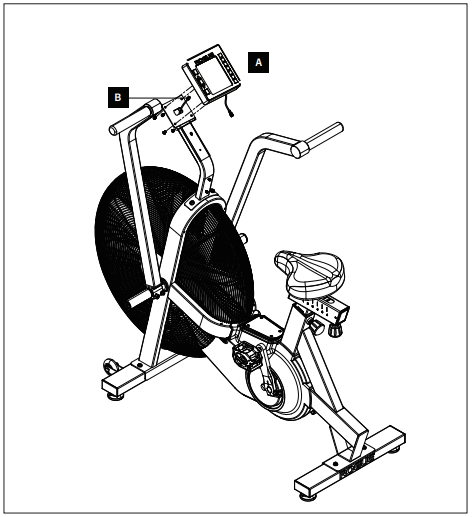

1. Remove the old console: Use the Phillips head screwdriver to remove the four screws on the back of the current console. Disconnect the A and B cable connectors, then remove the old console from the bike. The removed screws can be discarded.

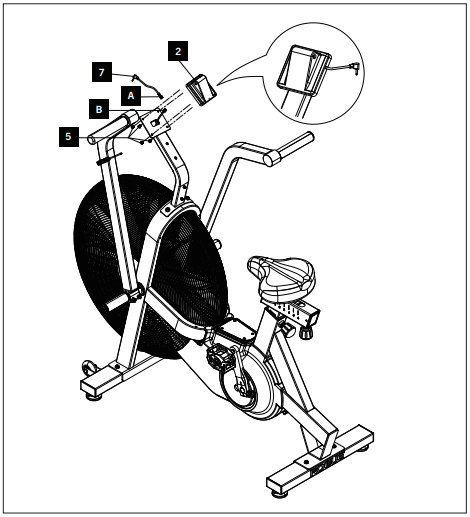

2. Install the adapter plate: Take the new cable (7) and connect the A and B connectors. Carefully push the connected cable back into the console mast and place the M2 adapter plate (2) onto the top of the mast. Ensure there is approximately 10cm/4" of cable visible to connect to the new console, and verify the cable is running through the groove on the back of the adapter plate to prevent trapping or pinching. Secure the adapter plate to the console arm using the Phillips screwdriver (6) and four new M5*8 screws (5) provided.

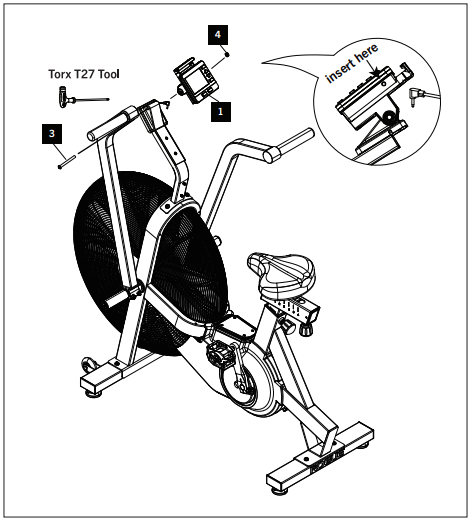

3. Mount the M2 console: Secure the M2 console to the adapter plate using the provided Torx T27 tool (9), the M8*75mm bolt (3), and the M8 lock nut. Ensure the hex nut is properly inserted into the hex recess on the right side of the M2 console. Finally, plug the sensor cable into the right-hand side of the new M2 console.
Key Details
Battery Installation: Before use, remove the battery cover from the console using the Phillips head screwdriver. Install two D-cell (1.5v) batteries, ensuring the positive and negative ends are aligned with the corresponding symbols. Reattach the cover and secure it with the four screws.
Cable Management: Always ensure cables are routed through designated grooves to avoid damage during installation.
Reset Procedure: To erase all stored data and reset the console to factory settings, insert a paper clip into the recessed "reset" button on the back of the monitor and hold for at least 5 seconds.
Maintenance and Care
To ensure longevity and optimal performance of your M2 console:
Remove the batteries from the monitor if the bike will not be in use for a period of 3 months or more.
Keep the console clean and free of debris.
Periodically check that the mounting hardware remains secure.
Check the Rogue App for any new firmware updates.
Frequently Asked Questions
Q: How do I activate Competition Mode?
Hold down the 'COMP' button on the back of the monitor for 2 seconds. The LED light will turn on when Competition Mode is active.
Q: How do I turn the console off?
To enter Sleep Mode, return to the main menu and press and hold the 'HOME' button.
Q: What are the Race System Jacks used for?
These jacks are used for connecting multiple machines together for racing.
