Overview
This article provides a comprehensive guide on how to replace a pedal crank arm on the Rogue Echo Bike. This procedure is necessary if a crank arm becomes damaged or requires maintenance to ensure the drive system remains secure.
Number of Steps: 6 steps .
Issue: Damaged or worn pedal crank arm.
Required Tools: * Phillips/Cross Head Screwdriver.
8mm Hex/Allen Key.
Required Parts: Replacement Pedal Crank Arm.
Detailed Instructions
Remove Plastic Housing Screws: Use a Phillips screwdriver to remove the two screws located on the bottom of the right-side plastic housing. If you are replacing the RIGHT crank arm, remove the three screws at the top of the right-side housing. If replacing the LEFT crank arm, remove the three screws at the top of the left-side housing.

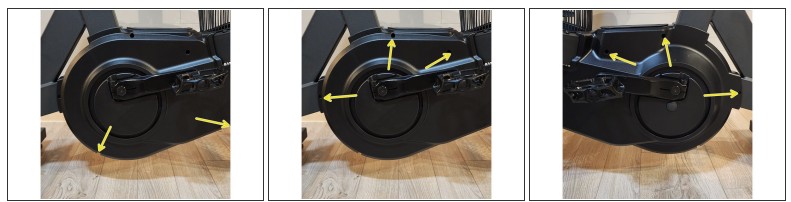

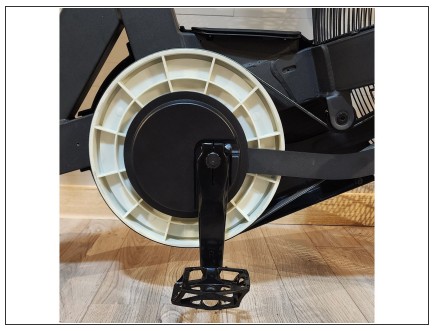

Remove Plastic Housing: Rotate the pedal you are servicing to the bottom of its rotation. This provides the necessary clearance to slide the plastic housing down and away from the bike for removal.

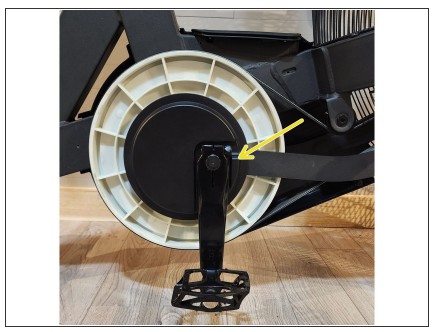

Remove Crank Arm: Use an 8mm Allen wrench to unscrew and remove the crank arm bolt. Pull the crank arm straight off the spindle; note that significant force may be required to free it.

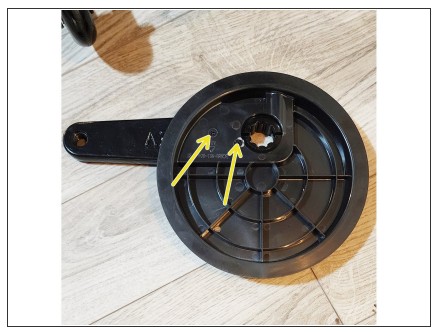

Remove Crank Arm Cover: Using a Phillips screwdriver, remove the screws from the back of the plastic cover attached to the old crank arm. Attach your new replacement crank arm to this plastic cover using the same Phillips screws.

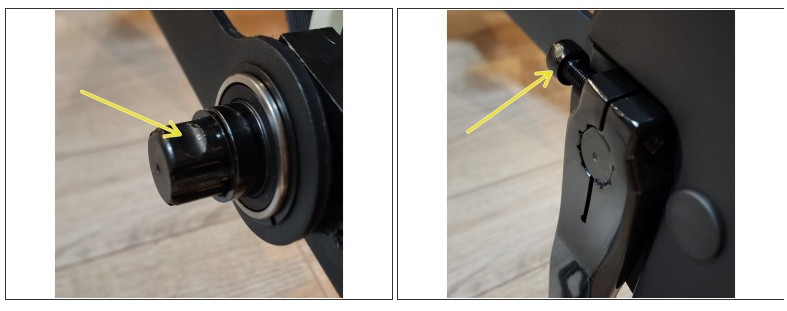

Align Spindle Grooves: When preparing for reassembly, note that the spindles feature specific grooves designed to receive the bolts that secure the crank arms.

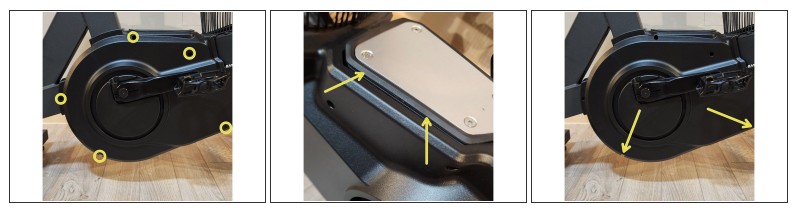

Reinstall and Finalize: Reinstall the crank arm by following the removal steps in reverse order. Ensure the plastic housing is properly seated in the groove of the rubber gasket surrounding the footrest upon reassembly.
Key Details and Safety Notes
Removal Force: Be aware that some screws and bolts on the Echo Bike may require extensive force to break loose and remove.
Screw Differentiation: When reinstalling the right-side plastic housing, remember that the two smaller Phillips screws are specifically intended for the bottom two holes.
Housing Alignment: Proper seating of the plastic housing within the rubber gasket is essential for a correct fit and to prevent interference during operation.
Maintenance and Care
To maintain the longevity of your new pedal crank arm and the Echo Bike drive system:
Periodically check the 8mm crank arm bolts to ensure they remain tight, as high-intensity use can cause vibration-related loosening.
Keep the spindle and crank arm interface clean of debris to prevent corrosion or "seizing," which makes future removals more difficult.
Ensure the plastic covers and housings are securely fastened to protect internal components from sweat and dust.
Frequently Asked Questions
Q: Do I need a special tool to pull the crank arm off? A: While some bikes require a crank puller, the Rogue Echo Bike crank arm can be pulled straight off after removing the 8mm bolt, though it may require significant physical force.
Q: Are the screws for the plastic housing all the same size? A: No. The two smaller Phillips screws are specifically used for the bottom holes on the right-side housing.
Q: Why is it hard to remove the bolts? A: Some fasteners on the Echo Bike are installed with high torque and may require extensive force to remove during maintenance.
Q: How do I ensure the crank arm is put back on correctly? A: Ensure the bolt aligns with the groove on the spindle before tightening, and follow the removal steps in exact reverse.
