Overview
This article provides instructions for replacing the fan assembly on the Rogue Echo Bike. This procedure is typically necessary if the fan shows signs of bearing wear.
Number of Steps: 12 .
Issue: Bearing wear within the fan assembly.
Required Tools: * Phillips/Cross Head Screwdriver.
18mm Socket or Wrench.
13mm Socket or Wrench.
Required Parts: Combined fan/axle/bearing assembly.
Detailed Instructions

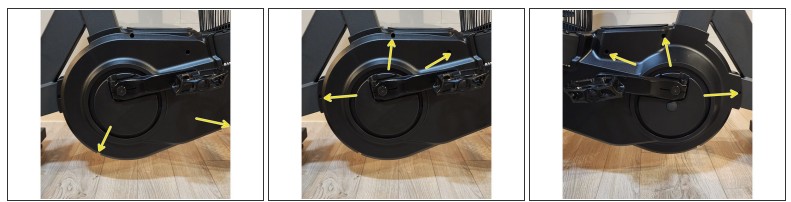

Remove Plastic Housing Screws: Use a Phillips screwdriver to remove the two screws located at the bottom of the right-side plastic housing, followed by the three screws at the top.

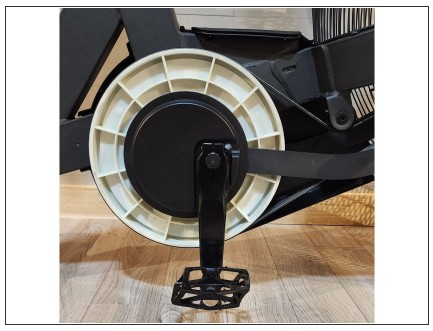

Remove Plastic Housing: Rotate the pedal to the bottom position to create enough space to slide the housing down and off the bike.

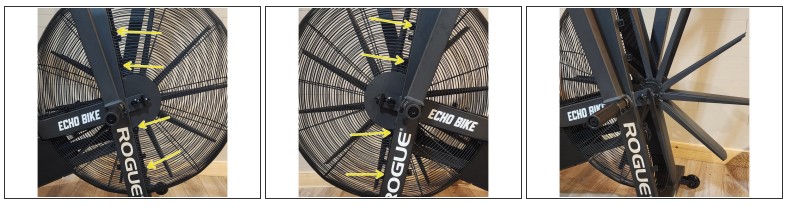

Remove Fan Cage Front: Use a Phillips screwdriver to remove the four screws on the right side of the cage and the corresponding screws on the left side to detach the front half.

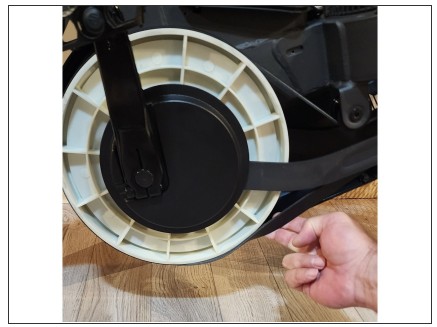

Remove Belt Tension: Pull the drive belt firmly toward you at the bottom of the drive wheel while rotating the wheel forward until the belt pops free.

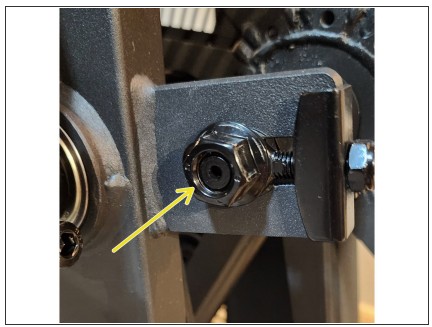

Loosen Fan Assembly Nuts: Use an 18mm socket or wrench to loosen the axle nuts securing the fan assembly.

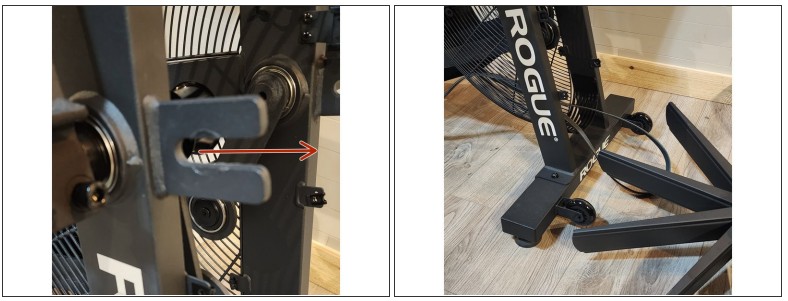

Remove Fan Assembly: Slide the fan assembly straight off the forks and pull the belt free from the assembly pulley.

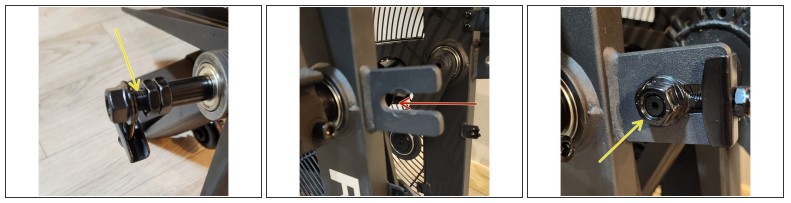

Mount Replacement Assembly: Slide the new fan assembly onto the forks, ensuring the belt is in place and the tension plate is positioned on the outside of the forks. Use the 18mm tool to loosely tighten the axle nuts.

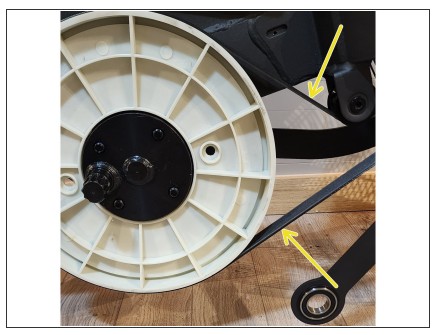

Reinstall the Belt: Reverse the removal steps to seat the belt, rotating the pedals as needed to align it with the drive wheel grooves.

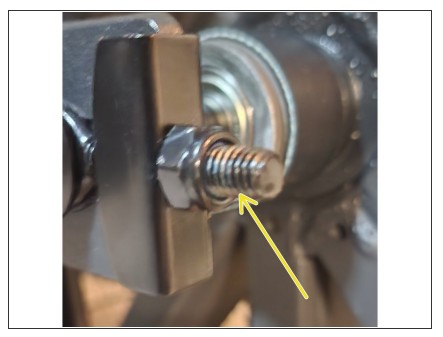

Tension the Belt: Tighten the tensioning nuts with a 13mm socket or wrench until approximately 3/8" of threads are exposed.

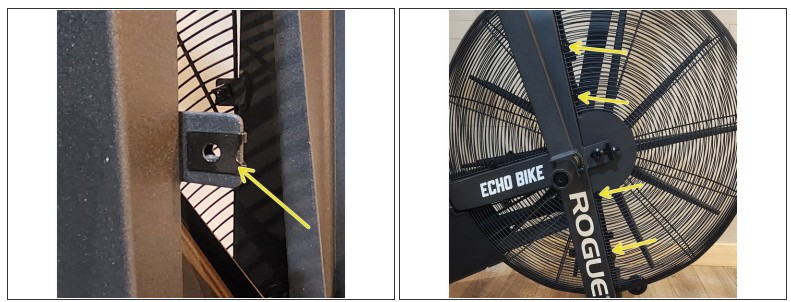

Reinstall Fan Cage: Ensure the threaded clip nuts are aligned with the frame holes, then replace the four screws on both sides of the cage using a Phillips screwdriver.

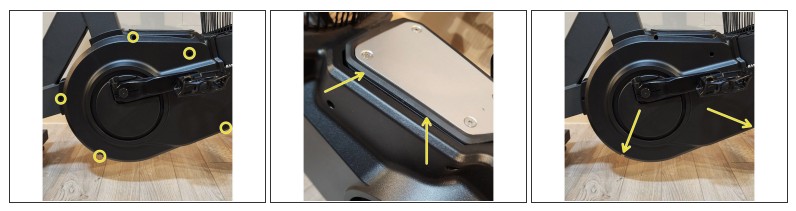

Reinstall Plastic Housing: Slide the housing back into place, ensuring it sits in the rubber gasket groove. Replace the five screws, noting that the two smaller screws belong in the bottom holes.
Final Alignment and Tightening: Pedal the bike to check for interference. Adjust alignment by turning tensioning nuts one side at a time with the 13mm tool; once aligned, fully tighten the 18mm axle nuts.
Key Details and Safety Notes
Pinch Hazard: Removing the drive belt presents a risk of pinching fingers between the belt and drive wheel. Wearing gloves is recommended.
Exposed Blades: Once the fan cage is removed, the fan blades are exposed. Exercise extreme caution when moving the pedals or arms while the cage is off, and never leave the bike unattended without the cage in place.
Belt Path: Carefully observe the path the belt takes through the drive and retaining wheels during removal to ensure correct reassembly.
Maintenance and Care
To ensure the longevity of your new fan assembly and optimal bike performance:
Regularly check the belt tension to ensure it remains at the recommended $3/8^{\prime\prime}$ of exposed thread to prevent skipping.
Periodically inspect the fan cage screws and axle nuts to ensure they remain fully tightened and secure during use.
Keep the fan blades and cage clear of debris to prevent imbalance or interference during high-speed rotation.
Frequently Asked Questions
Q: How do I know if my fan assembly needs to be replaced? A: Replacement is typically required if the assembly shows signs of bearing wear, such as unusual noise or grinding during rotation.
Q: What should I do if the fan hits the cage after installation? A: Use a 13mm socket to adjust the tensioning nuts one side at a time to realign the fan assembly within the frame.
Q: Does it matter which screws I use for the plastic housing? A: Yes, the two smaller screws must be used for the holes at the bottom of the housing.
Q: Can I operate the bike without the fan cage? A: No. Operating the bike without the protective cage is dangerous due to the spinning blades and should not be attempted.
