Overview
This article provides instructions for aligning and tensioning the drive belt and fan assembly on the Rogue Echo Bike. Proper tension is essential for smooth operation and the longevity of the drive system.
Number of Steps: 6 steps .
Issue: Drive belt requires tensioning or alignment adjustment.
Required Tools: * Phillips/Cross Head Screwdriver.
8mm Hex/Allen Key.
18mm Socket or Wrench.
Detailed Instructions

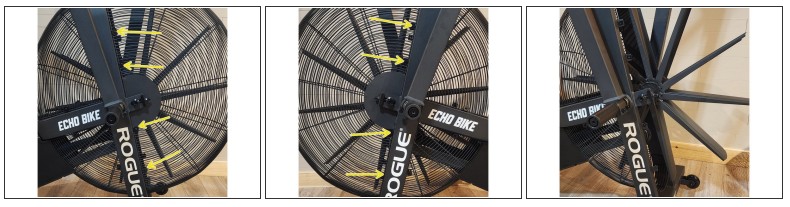

Remove Front Half of Fan Cage: Use a Phillips screwdriver to remove the four screws on the right side of the fan cage and the corresponding screws on the left side to detach the front section.

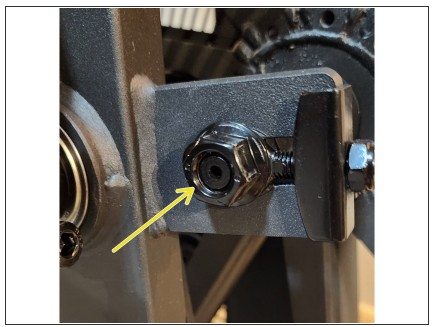

Loosen Fan Assembly Nuts: Using an 18mm socket or wrench, loosen the axle nuts that secure the fan assembly to the frame.

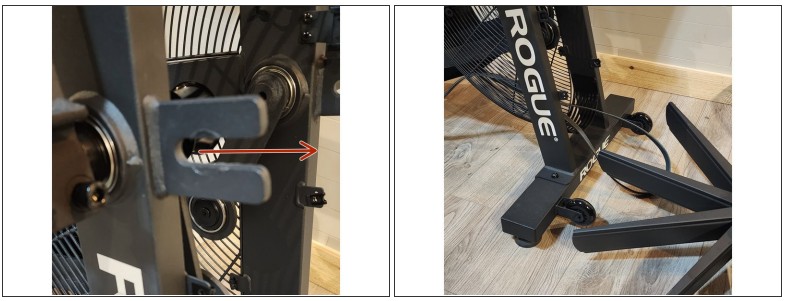

Remove Fan Assembly and Belt: Slide the fan assembly straight off of the forks. Pull the existing drive belt free from the bike and prepare your replacement or existing belt for reinstallation.

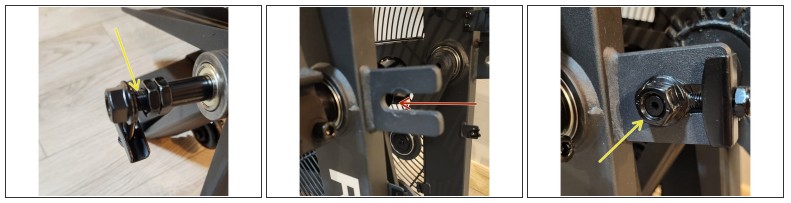

Mount the Fan Assembly: Slide the fan assembly back onto the forks, ensuring the belt is correctly positioned. Note the sequence of nuts and ensure the tension plate sits on the outside of the forks. Loosely tighten the axle nuts with the 18mm tool.

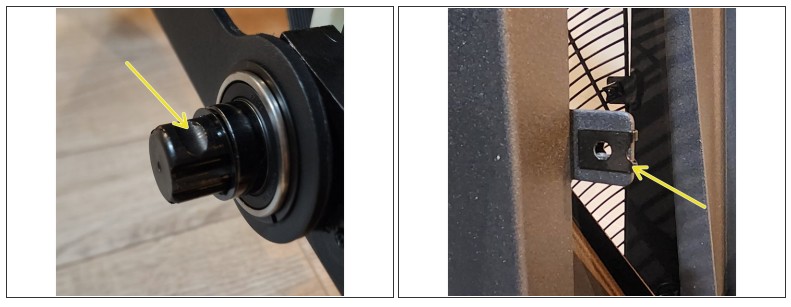

Alignment Reassembly: Assemble the remaining components in reverse order. Ensure the threaded clip nuts are positioned correctly over the frame holes and note that spindles have grooves to receive the bell crank arm bolts.

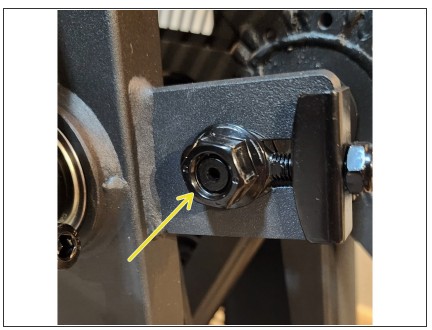

Final Alignment and Tightening: Pedal the bike to confirm the belt tracks smoothly through its path. If the alignment is correct, use the 18mm socket or wrench to fully tighten the axle nuts.
Key Details and Safety Notes
Pinch Hazard: This operation requires slackening and retightening the drive belt, which presents a pinch risk for fingers between the belt and the drive wheel. Wearing gloves is recommended.
Exposed Fan Blades: Once the fan cage is removed, the fan blades are fully exposed. Exercise extreme caution when rotating the pedals or moving the arms during this process.
Removal Force: Some screws and bolts on the Echo Bike may be fastened very tightly and can require extensive force to remove.
Maintenance and Care
To ensure optimal performance after tensioning:
Periodically check that the axle nuts remain fully tightened, especially after the first few uses following an adjustment.
Listen for unusual noises while pedaling, which may indicate that the belt has slipped out of its smooth tracking path.
Keep the area around the fan and belt free of debris to prevent interference with the drive system.
Frequently Asked Questions
Q: Do I need to remove the entire fan cage to adjust tension? A: No, the instructions specify removing only the front half of the fan cage to access the assembly.
Q: What should I do if the belt isn't tracking straight? A: Ensure the fan assembly is seated properly on the forks and that the tension plate is on the outside of the forks before fully tightening the axle nuts.
Q: Why are the bolts so difficult to turn? A: Components on the Rogue Echo Bike are often secured with high torque and may require extensive force to loosen.
