Overview
If your Echo Bike is producing minor creaking or squeaking noises, a simple waxing of the drive belt will return the machine to a smooth and quiet operation. This maintenance task is a safer alternative to removing the fan cage and provides direct access to the drive system.
Estimated Time: 10–15 minutes
Number of Steps: 5
Issue: Minor creaking and squeaking noises
Required Tools: Phillips/Cross Head Screwdriver, Wax (taper candle or wax block)
Step-by-Step Instructions
Setup and Preparation: Gather your tools and ensure you have a clean workspace. Any type of regular wax, such as a simple taper candle or wax block, is acceptable regardless of color.

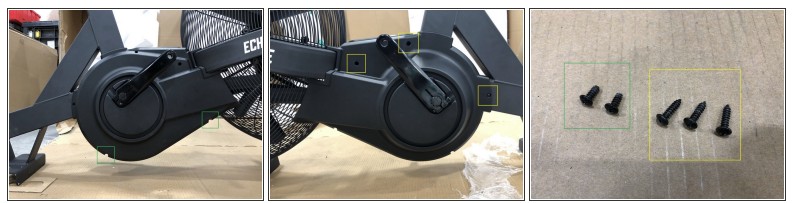

Remove Screws from the Right Side: Locate the RIGHT hand side of the belt guard. Use your Phillips head screwdriver to remove the 2 screws shown and carefully set them aside.
Remove Screws from the Left Side: Move to the LEFT hand side of the bike. Use the same screwdriver to remove the 3 screws located on this side and set them aside.

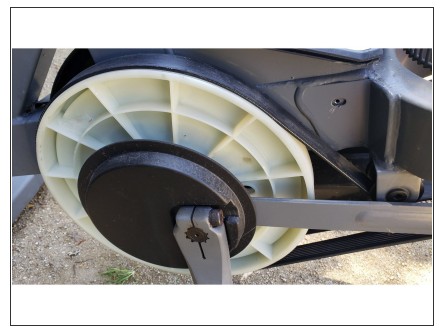

Remove the Belt Guard: Place the pedal in a downward position. This allows you to pull the RIGHT hand side of the guard toward you and downward to remove it from the frame.

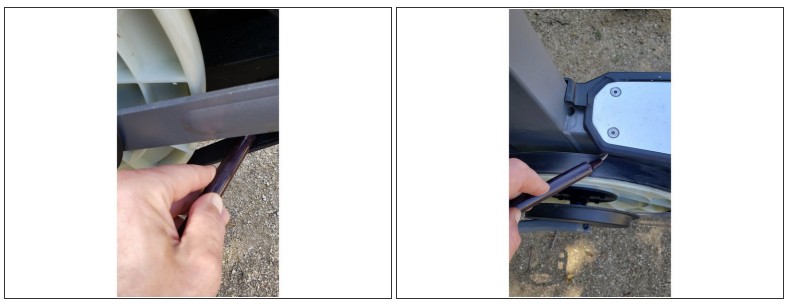

Apply Wax to the Belt: Rub the wax block or candle along the surface of the belt. Apply it to both the smooth outside face and the ribbed inside face, noting that the ribbed side may require slightly more wax. It is not necessary to use a large quantity of wax.
Reassemble the Guard: Slide the belt guard back into position. Replace all 5 screws, ensuring you return them to their original positions based on their specific lengths.
Key Details and Safety Precautions
Pinch Hazard: Use extreme caution when the guard is removed. There is a significant pinch hazard for fingers between the belt and the drive wheel.
Moving Parts: The arms of the bike will continue to move back and forth during this process. Perform all maintenance steps slowly and with care.
Chemical Warnings: DO NOT apply oil, grease, or belt lube to the drive belt. These compounds can damage the material and significantly shorten the life of the belt.
Maintenance and Care
To ensure the longevity of your Echo Bike, perform this waxing procedure whenever minor noise persists. Keeping the belt free of liquid lubricants (oils/greases) is the most critical factor in preventing premature belt failure. Always ensure the belt guard is securely fastened with all 5 screws after maintenance to protect the internal drive components from dust and debris.
Frequently Asked Questions
Q: What kind of wax should I use on my Echo Bike belt? A: You can use any regular wax, including a standard taper candle or a wax block. The color of the wax does not matter.
Q: Can I use standard belt dressing or spray lubricant instead? A: No. You should never use oil, grease, or belt lube, as these can damage the belt and reduce its lifespan.
Q: Do I need to remove the fan cage to quiet the squeaking? A: No, removing the right side of the belt guard is the safest and most effective way to access the belt for waxing.
Q: How much wax should I apply to the belt? A: A large quantity is not necessary; simply rub the wax along the surface until the faces are lightly coated.
