Overview
The Rogue Echo Bike's linkage arm is a critical component that connects the handle arms to the pedal assembly, enabling the bike's dual-action movement. A "bad" or damaged linkage arm can cause irregular noise, a loss of smooth motion, or mechanical failure during use. This guide details the replacement process for a faulty linkage arm to restore optimal bike performance.
Estimated Time: Approximately 20–30 minutes.
Number of Steps: 9 steps.
Describe the Issue: Mechanical play, noise, or visible damage to the linkage arm connecting the handles and pedals.
Required Tools: 18mm Socket or Wrench, 8mm Hex/Allen Key, 4mm Hex/Allen Key, and a Phillips/Cross Head Screwdriver.
Detailed Step-by-Step Instructions

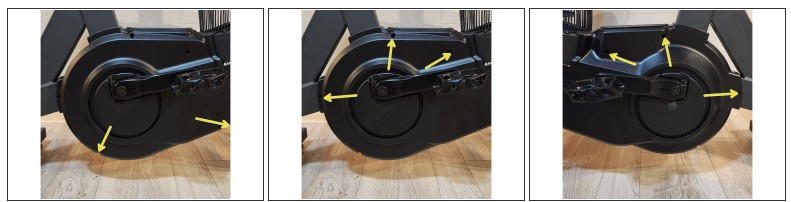

Remove Housing Screws: Use a Phillips screwdriver to remove the two screws at the bottom and the three screws at the top of the right-side plastic housing. Repeat for the three top screws on the left-side housing.

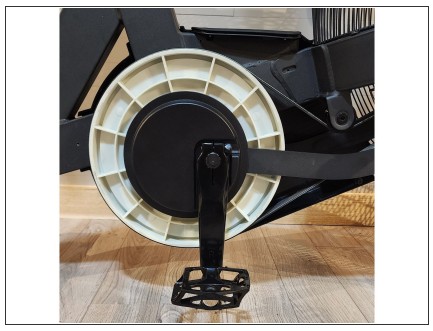

Remove Plastic Housing: Position the pedal at the bottom of its rotation for each side to provide enough room to slide the housing down and off the bike.

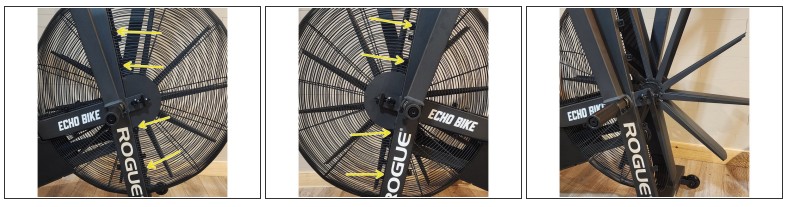

Detach Fan Cage: Remove the four screws on the right side of the cage and the corresponding screws on the left side to take off the front half of the fan cage.

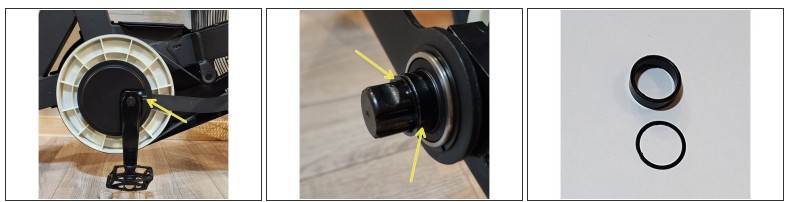

Remove Pedal Crank Arm: Use an 8mm Allen wrench to remove the crank arm bolt. Pull the crank arm straight off (force may be required) and remove the spindle spacers, noting their order.

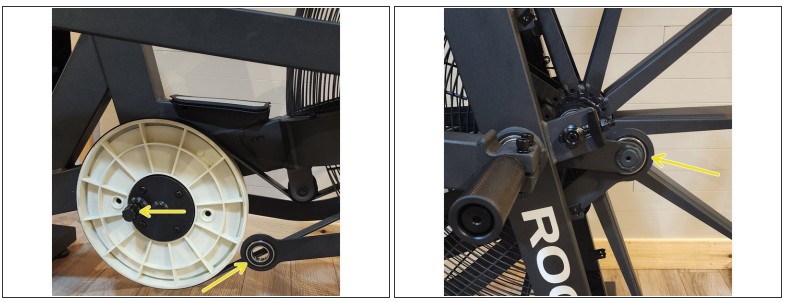

Detach Linkage Arm from Spindle: Rotate the main drive wheel until the crank arm spindle is at the rear. Hold the exercise arm and pry the end of the linkage arm from the spindle, letting the exercise arm drop toward the rear to expose the front screw.

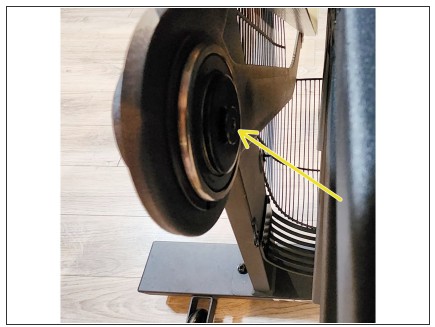

Remove Front Linkage Arm Screw: Use a 4mm Allen wrench to remove the screw located on the inside of the linkage arm.

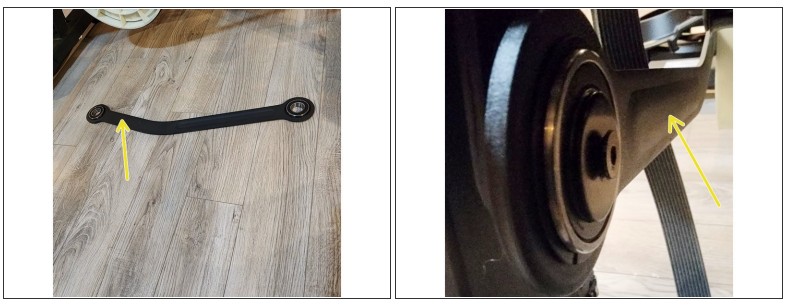

Remove Linkage Arm: Slide the linkage arm off the exercise arm spindle and remove it from the bike.
Position Replacement Arm: Ensure the smaller section after the bend is on the pedal side and the indentation faces the inside of the bike.
Reassemble: Follow the steps in reverse order to reinstall all components.
Key Details and Auxiliary Steps
Safety Warning: Once the fan cage is removed, the fan blades are exposed. Exercise extreme caution when rotating pedals or moving the arms during this time.

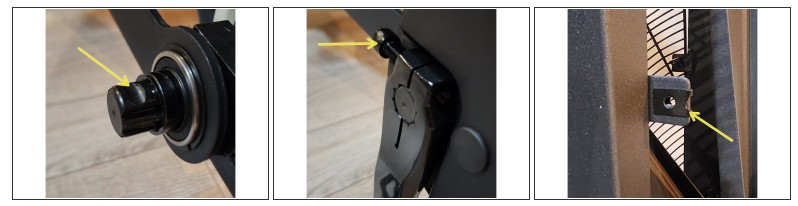

Spacers: When reassembling the crank arm, the thicker spacer must be placed on the inside of the spindle.
Force: Some screws and bolts may require extensive force to remove during the troubleshooting process.
Maintenance and Care
Housing Alignment: When replacing the plastic housing, ensure it sits correctly in the groove of the rubber gasket surrounding the footrest.
Screw Management: Note that the two smaller Phillips screws are specifically for the holes at the bottom of the plastic housing.
Clip Nuts: Before reinstalling the fan cage, verify that the threaded clip nuts are properly positioned over the holes in the frame.
Frequently Asked Questions
Q: Does it matter which way the linkage arm faces during installation?
A: Yes. The smaller section after the bend goes on the pedal side, and the indentation must face the inside of the bike.
Q: Why do I need to hold the exercise arm when prying the linkage arm?
A: Holding the arm prevents it from falling unexpectedly. Once detached, letting it drop to the rear exposes the 4mm front linkage arm screw for removal.
Q: What should I do if the crank arm is stuck?
A: Pull the arm straight off; the manual notes that extensive force is often required to remove these components.
Q: Are there any special considerations for the spindles?
A: The spindles have specific grooves designed to receive the bolts that secure the crank arms.
