Overview
This guide provides a comprehensive process for checking the basic functionality of the Echo Bike console, sensor, and internal wiring. If your console is not displaying workout data while pedaling, following these steps will help identify whether the issue is related to battery power, loose connections, or a faulty sensor.
Estimated Time: 20–30 minutes
Number of Steps: 9
Issue: Console not powering on or not displaying activity/RPM while pedaling
Required Tools: Phillips/Cross Head Screwdriver , 6mm Hex Allen key
Detailed Step-by-Step Instructions
Install/Check Batteries:

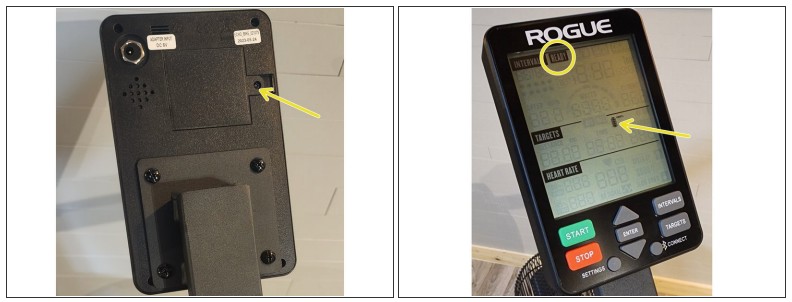

Use a Phillips screwdriver to loosen the single screw on the battery compartment cover.
Install four (4) AA batteries, ensuring the positive and negative ends are oriented correctly.
Replace the cover and tighten the screw.
The screen should cycle through various interval modes and display the current battery condition.
Test Basic Console Function:

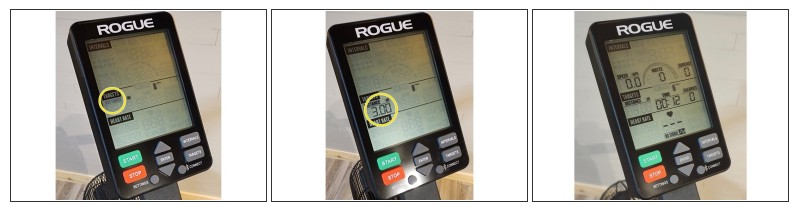

Press TARGETS to cycle through Distance, Time, and Calories.
Press ENTER and use the UP or DOWN arrows to adjust your target.
Press START to begin a workout session.
Pedal the bike to see if parameters change; if the console remains at zero, proceed to wiring checks.
Inspect Console Wiring:

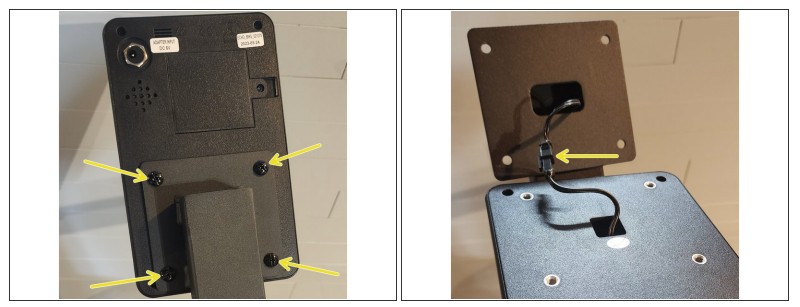

Remove the four Phillips screws from the back of the console mount.
Ensure the wire exiting the mast was not pinched against the mast plate.
Gently pull on the plastic connectors to confirm they are secure (do not pull on the wires directly).
Reinstall the console, taking care not to overtighten screws or pinch the wire.
Inspect Mast Wiring:

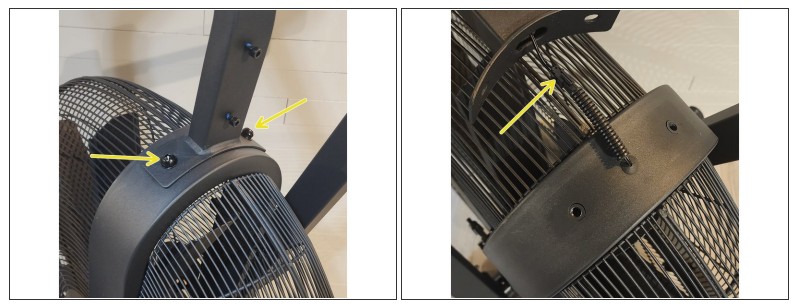

Use a 6mm Allen wrench to remove the two bolts holding the console mast to the frame.
Check that the internal wires are joined and secured correctly.
Reinstall the mast to the frame, ensuring the wire is not pinched during assembly.
Access Sensor (Cage Removal):

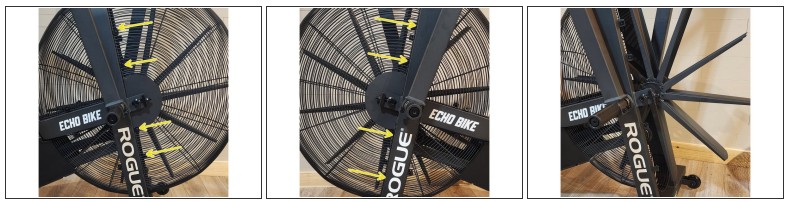

Use a Phillips screwdriver to remove the four screws on the right side of the fan cage, then remove the screws on the left side.
CAUTION: The fan blades are now exposed; do not rotate the pedals or move the arms quickly while the cage is off.
Verify Sensor and Magnet Alignment:

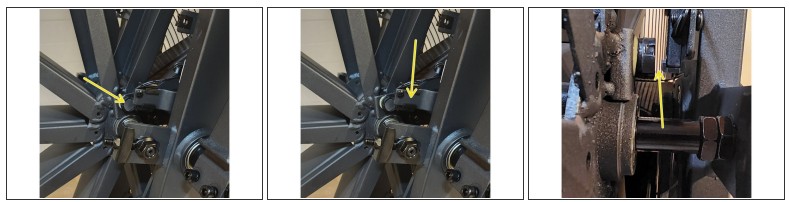

Locate the magnet on the fan hub and the sensor mounted to the forks.
Carefully rotate the fan to align the magnet with the sensor.
Confirm the gap between the magnet and sensor is approximately 1/4".
Check Sensor Wiring:

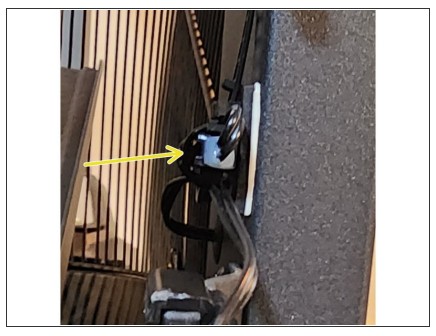

Locate the connector on the forks just above the sensor.
Ensure the connection is clean and fully seated.
Final Functional Test:
Repeat the testing from Step 2.
If the console still fails to pick up a signal after verifying all connections and sensor alignment, the internal wiring harness may be damaged and require replacement.
Key Details and Safety
Pinch Hazard: Always check for pinched wires during reassembly, particularly between the mast and the frame, or the console and its mounting plate.
Exposed Fan: Use extreme caution when the fan cage is removed. Rotating the pedals while the cage is off can cause serious injury if hands or clothing are near the blades.
Maintenance and Care
To keep your console functioning optimally, replace the AA batteries as soon as the low-battery indicator appears to prevent potential corrosion. Periodically check the bolts at the base of the console mast with a 6mm Allen key to ensure they haven't loosened from vibration, which can lead to wire damage.
Frequently Asked Questions
Q: What type of batteries does the Echo Bike console use? A: The console requires four (4) AA batteries.
Q: How far away should the sensor be from the magnet? A: The gap between the sensor on the fork and the magnet on the fan hub should be about 1/4".
Q: What should I do if the console powers on but doesn't track my distance? A: Follow the wiring and sensor checks in this guide. If all connections are secure and the sensor gap is correct, your wiring harness may be defective.
Q: Can I pull on the wires to check if they are connected? A: No. You should pull GENTLY on the plastic connectors only; pulling on the wires can damage the internal contacts.
Q: Is it dangerous to pedal the bike with the fan cage removed? A: Yes. The fan blades are sharp and move at high speeds. Only rotate the fan slowly by hand for sensor alignment purposes while the cage is removed.
