Rogue Echo Bike: Seat Replacement

  • Updated

Overview

This article provides a comprehensive walkthrough for replacing the seat on a Rogue Echo Bike. Whether you are upgrading for comfort or replacing a worn component, this process ensures the seat is securely attached to the seat post for safe operation.



  • Estimated Time: 5–10 minutes

  • Number of Steps: 3

  • Issue: Worn, damaged, or uncomfortable bike seat

  • Required Tools: Multi-tool (included in the original Rogue Echo Bike Hardware kit), 10mm Wrench or Crescent Wrench



Detailed Step-by-Step Instructions

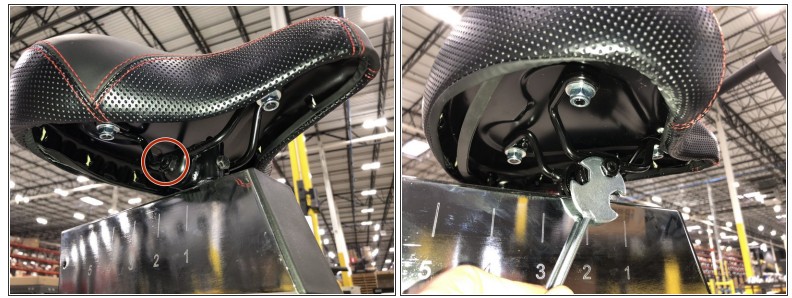

  1. Loosen the Seat Post Nuts: Locate the Hex Nuts on both the left and right sides of the seat post. Using the multi-tool provided in your original hardware kit, loosen these nuts. Note: Do not fully remove these nuts.

    Seat Replacement.jpg

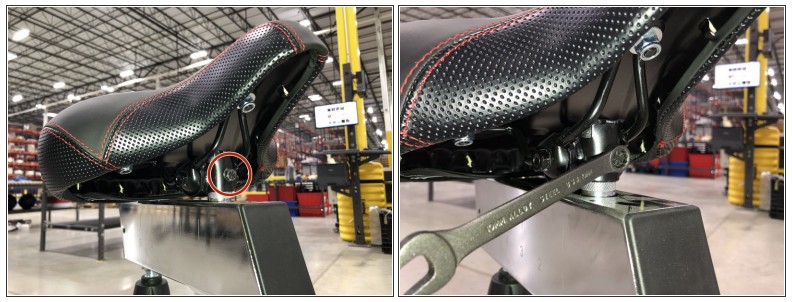

  2. Access and Remove the Center Bolt: Tilt the front of the seat upward to gain clear access to the center 10mm Hex Bolt. Use a 10mm wrench or a crescent wrench to remove the bolt located on the front of the seat post.

    Seat Replacement 2.jpg

  3. Remove and Prepare for Replacement: Lift the old seat off the post. Ensure you keep the 10mm Hex Bolt and the Split Lock Washer, as these are required to secure your new replacement seat.





Key Details

  • Hardware Retention: The Split Lock Washer is essential for preventing the center bolt from loosening during use; always ensure it is reinstalled with the new seat.



  • Installation: To install the replacement seat, simply perform the removal steps in reverse order.





Maintenance and Care

To ensure the longevity and safety of your Rogue Echo Bike seat, periodically check the tightness of the side hex nuts and the center 10mm bolt, as vibrations from high-intensity use can cause them to loosen over time. Wipe the seat down after each use with a non-abrasive cloth and mild cleaner to prevent sweat-related wear on the upholstery.





Frequently Asked Questions

Q: Do I need to buy new bolts to install a replacement seat? A: No, you should keep the 10mm Hex Bolt and Split Lock Washer from your original seat to secure the new one.



Q: Should I completely remove the nuts on the side of the seat post? A: No, you only need to loosen the Hex Nuts on the left and right sides to facilitate the replacement process.



Q: What tools are required if I lost my original Rogue multi-tool? A: You can use a standard wrench for the side nuts and a 10mm wrench or crescent wrench for the center front bolt.



Q: How do I make it easier to reach the center bolt? A: Tilting the front of the seat upward provides much easier access to the 10mm Hex Bolt.
