Overview
If your Echo Bike's fan blades are making noise or rubbing against other components, a manual adjustment of the fan assembly can realign the blades for quiet operation. This procedure involves adjusting the tensioning nuts to shift the fan assembly's position within the frame.
Estimated Time: 10–15 minutes
Number of Steps: 4
Issue: Fan blades making noise or touching the bike frame/linkage
Required Tools: 18mm Socket or Wrench, 13mm Socket or Wrench
Detailed Step-by-Step Instructions

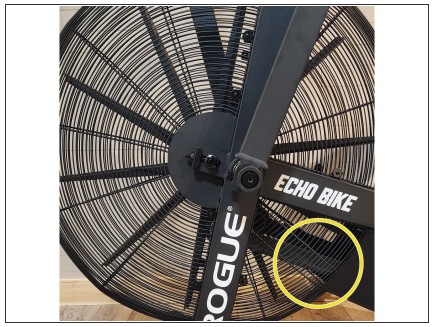

Inspect Fan Blades: Visually inspect the fan to determine exactly where the blades are making contact with another part. The most common point of contact is the linkage located on the LEFT side of the bike.

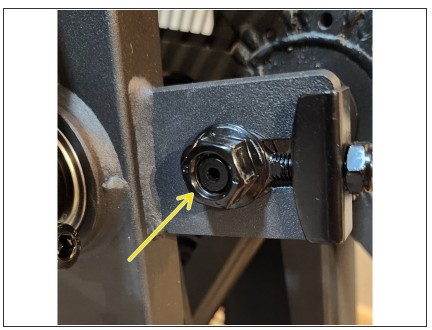

Loosen Fan Assembly Axle Nuts: Use an 18mm socket or wrench to loosen the axle nuts on both sides of the fan assembly.

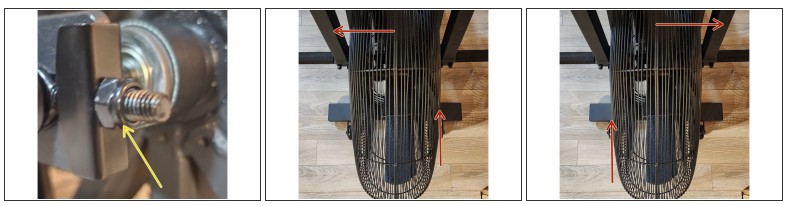

Tighten Tensioning Nuts: Use a 13mm socket or wrench to tighten the tensioning nut ONE full turn on the SAME side where the rubbing is occurring.
Tightening the left side nut moves the rear of the fan blades toward the right side of the bike.
Tightening the right side nut moves the rear of the fan blades toward the left side of the bike.
Test and Re-secure: Use the 18mm socket or wrench to fully tighten the fan assembly axle nuts. Test the bike to see if the noise has been eliminated.
Key Details
Repetition: If the noise persists after the first adjustment, this entire process can be repeated up to TWO more times to achieve the correct alignment.
Specific Movement: Remember that tightening a nut on one side shifts the rear of the blades toward the opposite side.
Maintenance and Care
To ensure optimal performance of your Echo Bike fan, periodically check that the 18mm axle nuts remain tight, as high-intensity use can cause vibrations that lead to loosening. If you notice new noises developing, perform a visual inspection immediately to prevent the fan blades from sustaining damage or causing wear on the linkage assembly.
Frequently Asked Questions
Q: Where is the fan most likely to rub? A: Rubbing occurs most commonly on the linkage on the left side of the bike.
Q: Which way do I turn the nuts to move the fan to the right? A: To move the rear of the fan blades to the right side of the bike, you must tighten the tensioning nut on the left side.
Q: How many times can I repeat this adjustment? A: The adjustment process can be repeated up to two additional times if the noise is not corrected on the first attempt.
Q: Do I need to loosen both sides of the axle before adjusting the tension? A: Yes, you must use an 18mm tool to loosen the axle nuts on both sides before moving to the 13mm tensioning nuts.
