Overview
The Rogue Echo Bike relies on a heavy-duty drive belt to provide smooth and consistent resistance. Troubleshooting or replacing the belt is necessary if it becomes worn, damaged, or loses proper tension. This guide provides comprehensive instructions to safely remove, replace, and tension the drive belt.
Estimated Time: 30–45 minutes.
Number of Steps: 14.
Describe the Issue: Drive belt wear, damage, or improper tension requiring replacement.
Required Tools: 8mm Hex/Allen Key, Phillips/Cross Head Screwdriver, 18mm socket or wrench.
Detailed Step-by-Step Instructions

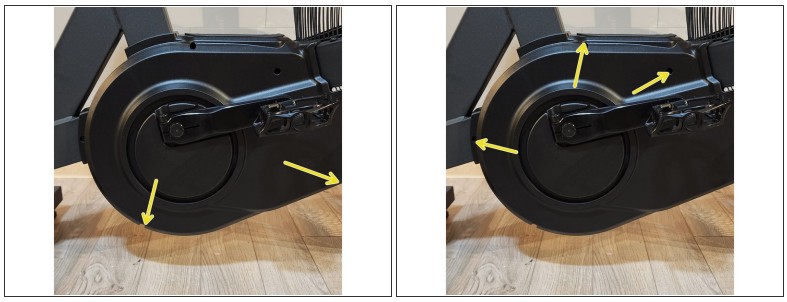

Remove Housing Screws: Use a Phillips screwdriver to remove the two bottom screws and three top screws from the right-side plastic housing.

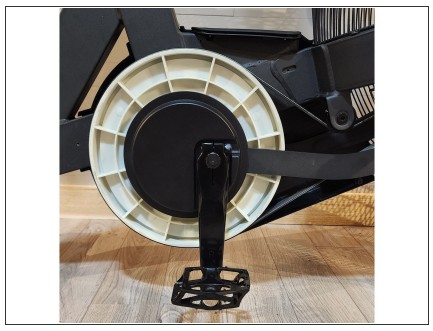

Remove Plastic Housing: Position the pedal at the bottom of its rotation and slide the plastic housing down around it for removal.

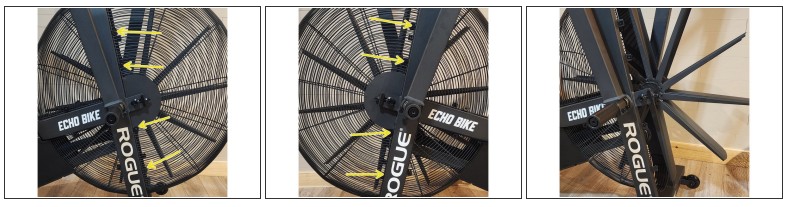

Detach Fan Cage: Use a Phillips screwdriver to remove the four screws on the right side and the corresponding screws on the left side to remove the front half of the fan cage.

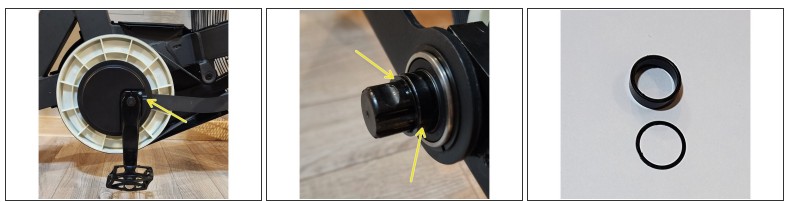

Remove Crank Arm: Use an 8mm Allen wrench to remove the crank arm bolt from each side and pull the arms straight off.
Note Spacer Order: Remove the spacers from the spindle, noting that the thicker spacer is positioned on the inside.

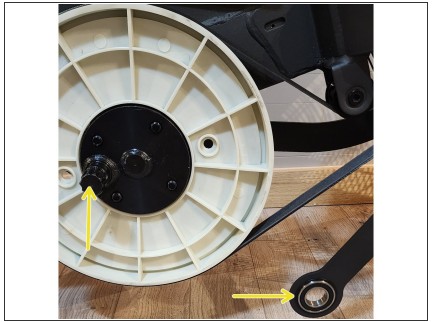

Detach Linkage Arm: Rotate the drive wheel until the crank spindle is toward the rear, then pry the linkage arm from the spindle while holding the exercise arm.

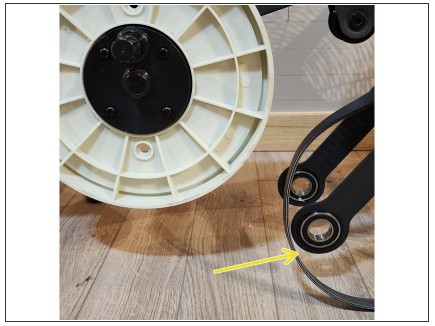

Remove Old Belt: At the bottom of the drive wheel, carefully but firmly pull the belt toward you while rotating the wheel forward until it pops free.

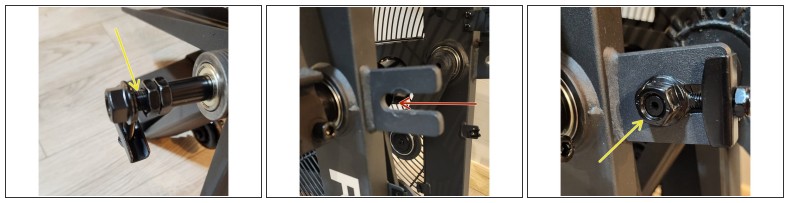

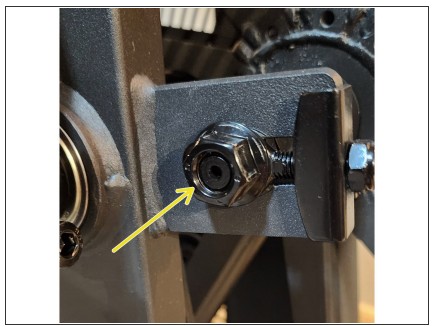

Loosen Fan Assembly: Use an 18mm socket or wrench to loosen the axle nuts securing the fan assembly.

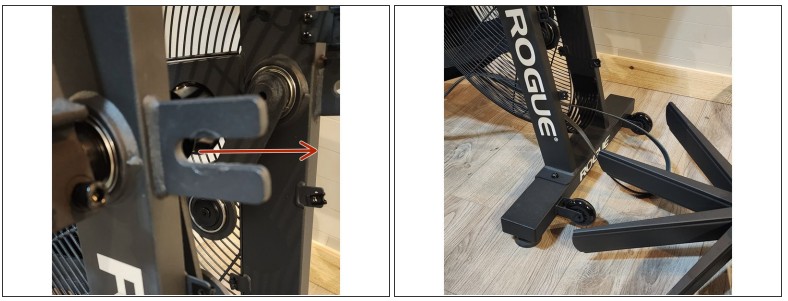

Remove Fan and Belt: Slide the fan assembly off the forks and pull the old belt free from the bike.
Mount Fan with New Belt: Position the new belt, slide the fan assembly back onto the forks, and loosely tighten the axle nuts.

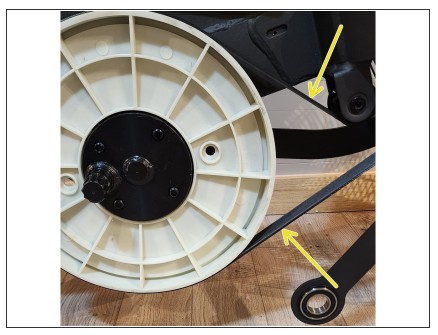

Route the Belt: Reverse the removal steps to reinstall the belt, ensuring it follows the correct path through the drive and retaining wheels.

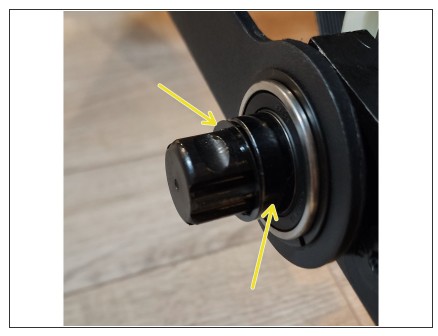

Reinstall Linkage Arm: Lift the exercise arm to align the linkage arm with the spindle and reinstall the spacers in their original order (thicker spacer inside).
Final Reassembly: Assemble all remaining components in reverse order

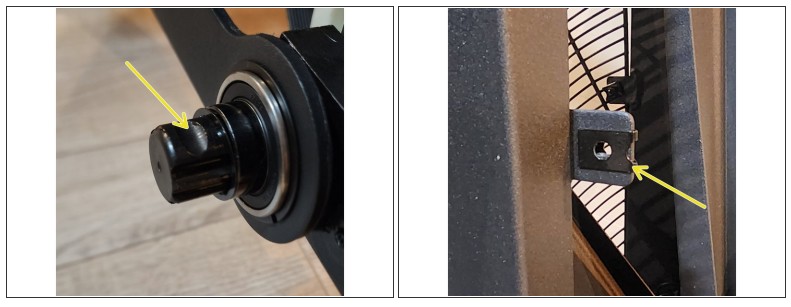

NOTE the spindles have grooves in them to receive the bolts that hold the bell crank arms on.
NOTE the threaded clip nuts. Ensure they are positioned over the holes in the frame before reassembly

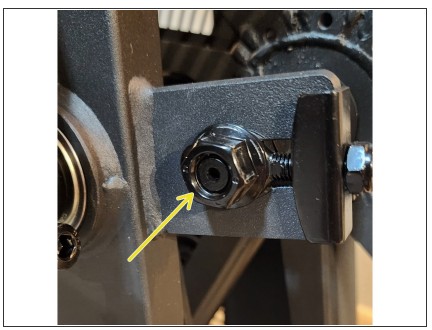

Final Tensioning: Pedal the bike to ensure the belt tracks smoothly; once alignment is confirmed, fully tighten the 18mm axle nuts.
Key Details and Auxiliary Steps
Force Required: Note that some screws and bolts may require extensive force for removal.
Pinch Hazard: This process presents a pinch risk between the belt and drive wheel; wear gloves if desired.
Exposed Blades: Once the fan cage is removed, the fan blades are exposed and dangerous; do not operate the bike without the cage in place.
Proper Fitment: When replacing the plastic housing, ensure it sits correctly in the rubber gasket groove surrounding the footrest.
Screw Differentiation: The smaller Phillips screws are specifically intended for the bottom two holes of the plastic housing.
Maintenance and Care
Belt Tracking: Always pedal the bike slowly after installation to verify the belt tracks smoothly through its intended path before full operation.
Secure Hardware: Ensure the fan assembly axle nuts are fully tightened with an 18mm tool only after confirming correct belt alignment.
Safety Check: Never leave the bike unattended while the protective fan cage is removed.
Frequently Asked Questions
Q: What should I do if the screws are too tight to move?
A: Some bolts on the Echo Bike are known to require extensive force to loosen; ensure you are using the correct size tool to avoid stripping the hardware.
Q: Does the order of spacers on the spindle matter?
A: Yes. The thicker spacer must be placed on the inside of the spindle for proper alignment.
Q: Is there a specific orientation for the linkage arm bolts?
A: Yes, the spindles have specific grooves designed to receive the bolts that secure the bell crank arms.
Q: Can I test the bike without the fan cage?
A: No. Operating the bike without the protective cage is extremely dangerous due to the spinning fan blades.
